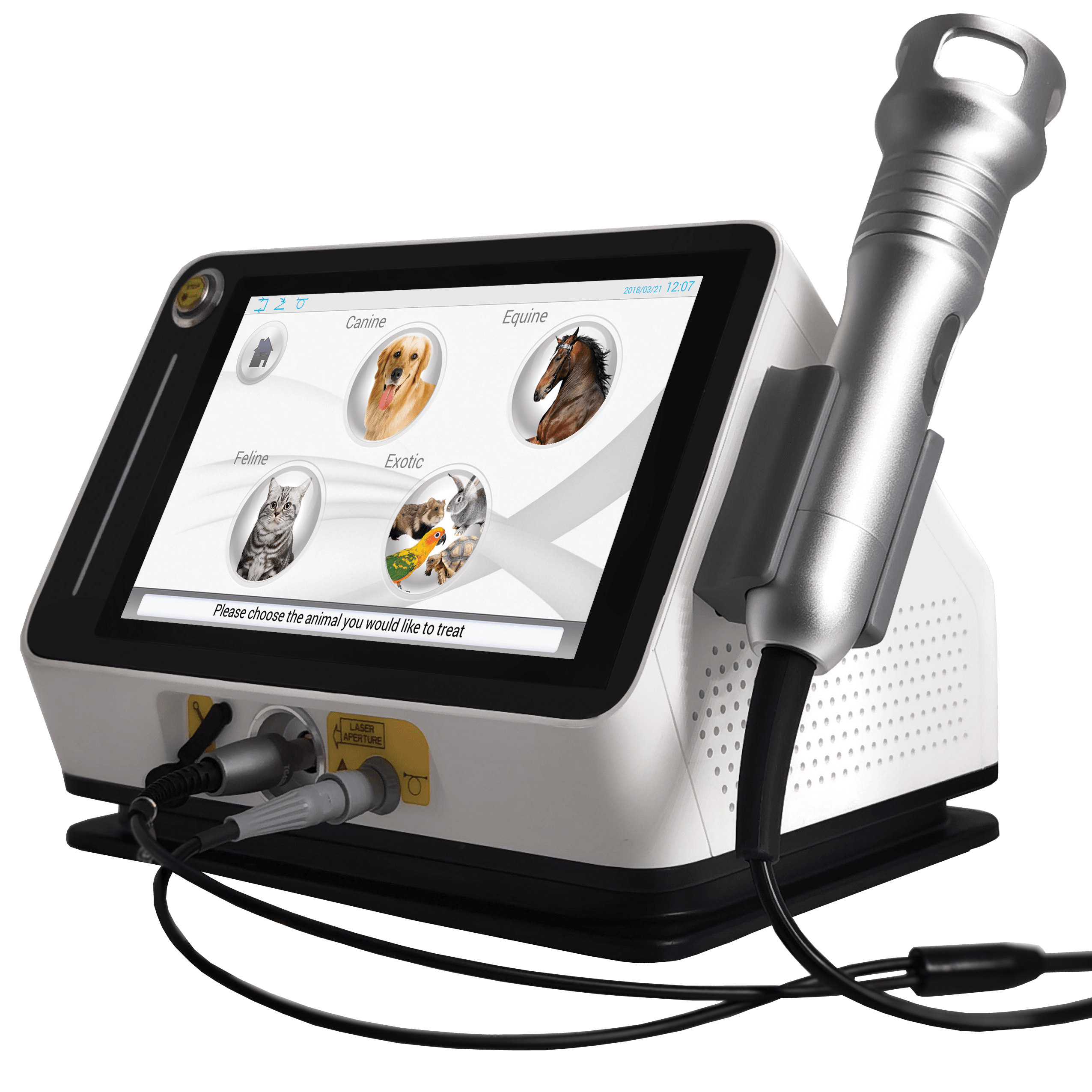

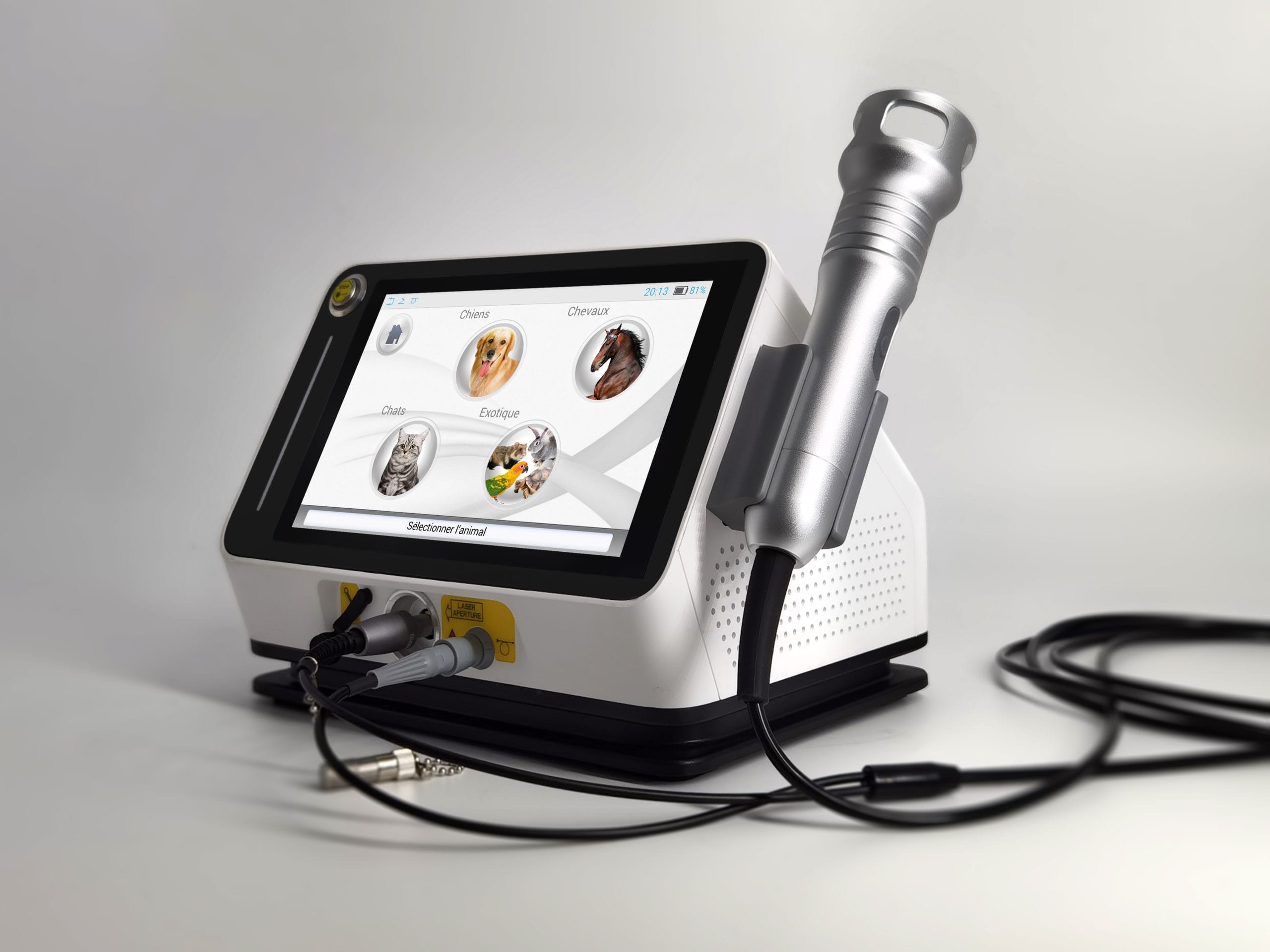

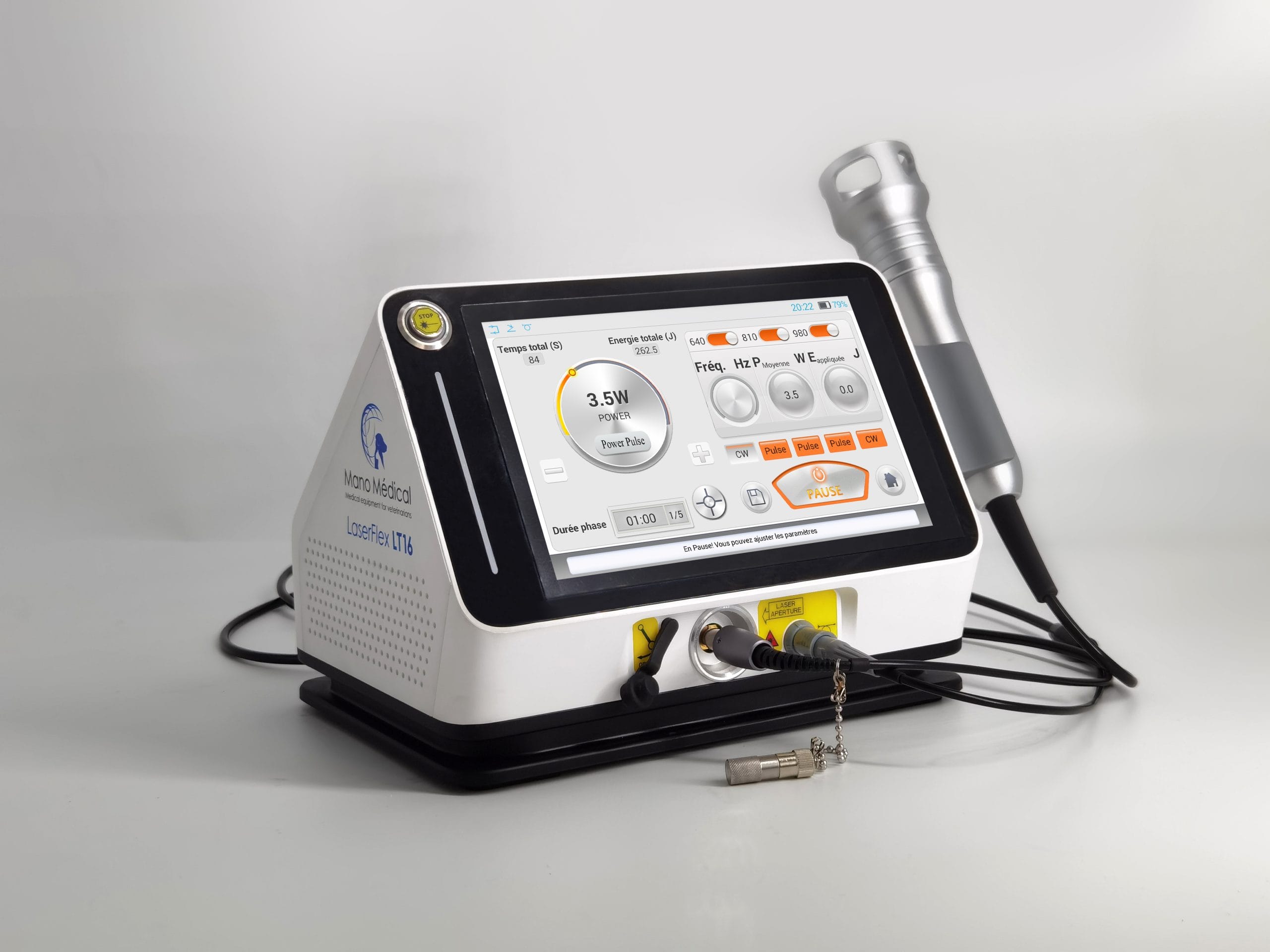

LaserFlex LT16

Compare
Category:

Wavelengths:

640 nm: Wavelength allowing treatment of dermatological wounds (licking wounds, hot spots…)
810 nm: Cytochrome c oxidase favoring the production of ATP and therefore the production of energy
980 nm: Optimal wavelength’s absorption of water, the main component of our body and blood (Hemoglobin also absorbs very well at 980 nm)
Which frequencies for which treatment?

Arthritis:
3 times the 1st week

2 times the 2nd week

1 time the 3rd week

Then a treatment every 3 to 5 weeks according to the obtained results

Difficult wounds and healing: 1 time every 3 to 4 days, then adapt the frequency according to the results until complete healing
Joint pain: Once a day every 3 to 4 days, then adapt the frequency according to the intensity of the pain and the effectiveness of the treatment
Gingivostomatitis: Once a day during 2 to 3 days, then every 3 to 4 days, then every 2 weeks and less if possible
Post surgical healing:
1 time immediately after surgery

1 time at dressing change

1 time when removing wires (inspection visit)

Other treatments: In general, any treatment of an acute problem needs a Hight frequency of treatments (several times a day if necessary) using lower powers. The treatment of a chronic problem will require on the contrary a higher power but a lower frequency.

Technical Data:

Laser classification: IV (4)
Laser type: Solid state, semi conductor laser
Source : Gallium aluminium arsenide laser diode (GaIAs)
Wavelenghts: 640 ± 10 nm, 810 ± 10 nm et 980 ± 10 nm
Fiver diameter: 600 µm
Max. Power: 16 W (power pulse mode)
Spot size: > 15 mm
Operation modes: Continuous Wave (CW) or repeat pulse
Frequency during repeat pulse operation:
Low frequency: 25 Hz
Average frequency: 300 Hz
High frequency: 5000 Hz
Aiming laser Wavelength: 650 ±20 nm
Foot/finger switch operation: ON / OFF
Battery capacity: 3500 mAh
Operation temperature: 0° to 30°C
Weight: 2.2 kg
Dimensions: 200 x 160 x 160 mm
Power requirement: 12V – 5A

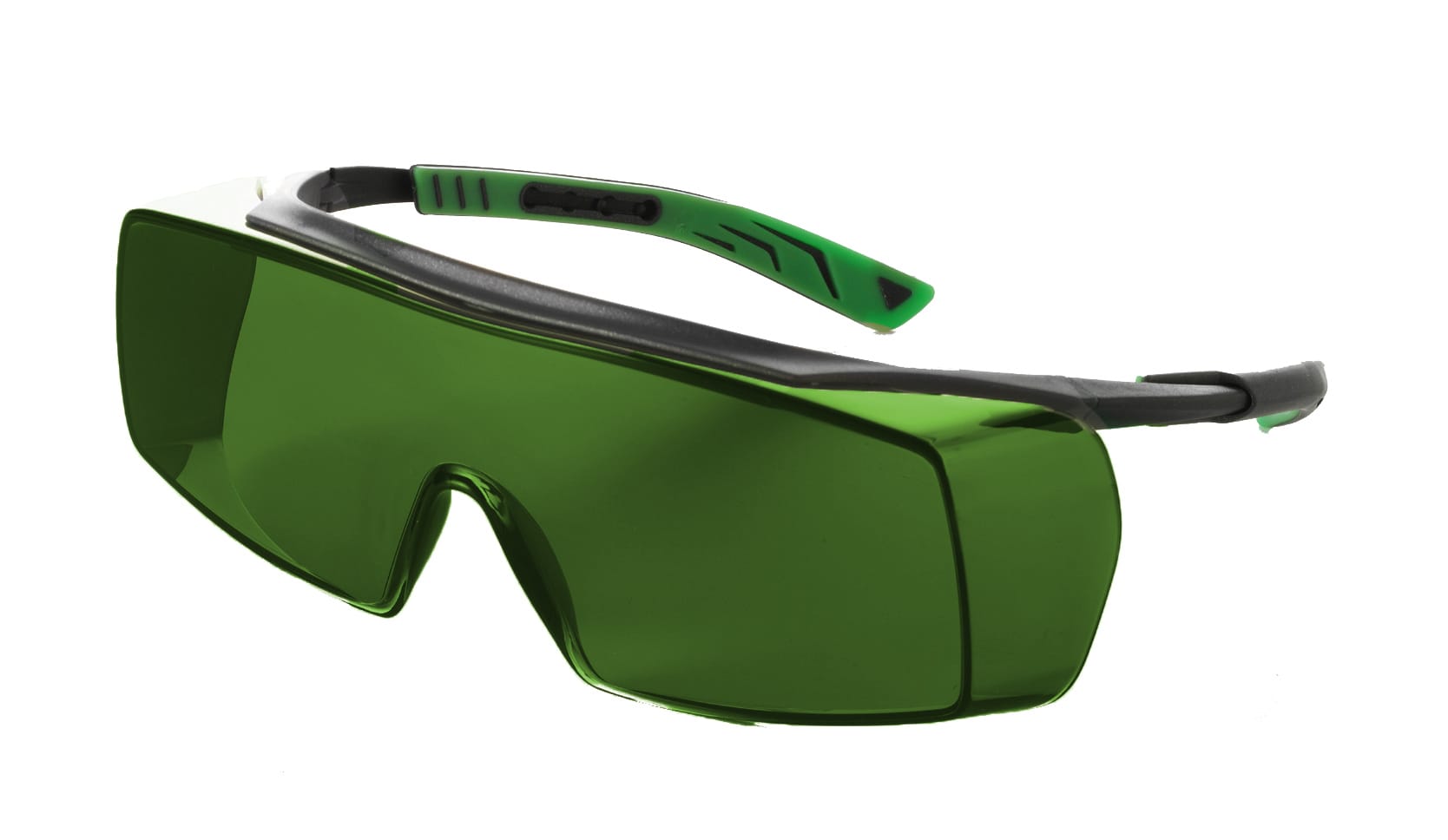

Accessories included: 1 handpiece + 2.5 m lg cable, 1 large beam applicator, 2 pair of safety goggles

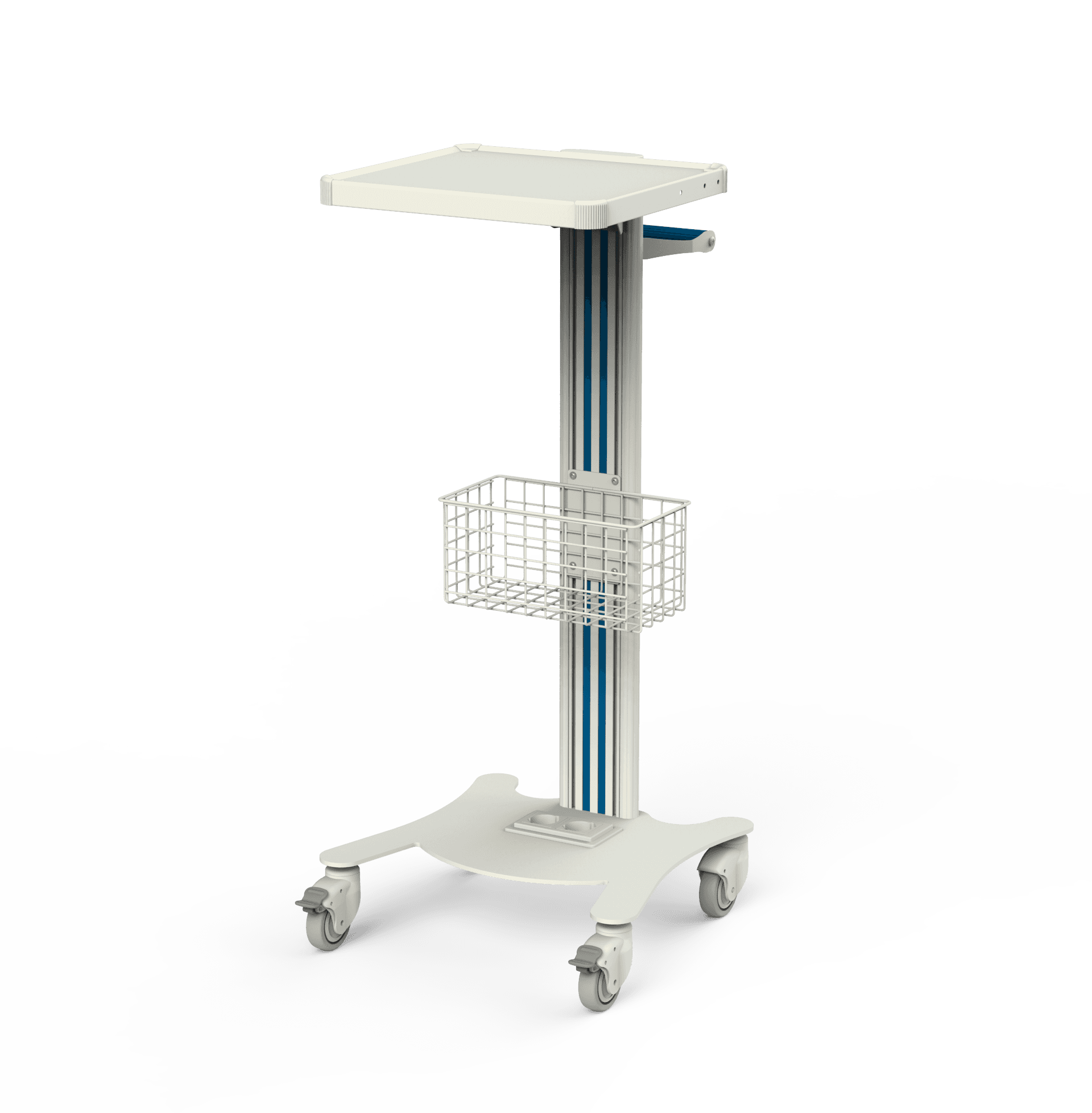

Options: Nose, Ear and Throat tip for handpiece, large massage ball head for headpiece, Additional safety goggles, trolley with castors

Description

Ergonomy:
Battery operated
Compact and lightweight, 2.2 kg only!
7” Touchscreen
Simple and intuitive display
Power: Up to 16 W (Power Pulse mode)
Android operating system
Wireless connection
Ergonomy:
Pre-set protocols for the different conditions for dogs, cats, horses and exotics (reptiles, small mammals and birds)
Protocols adapted to the coat color
Options to change protocols or to create new ones
Recording of the personalized treatments for the patients
Flexibility to change frequency to continuous, low, medium or high within the protocol function

LaserFlex LT16

Download(2 MB)

Mobility • Simplicity • Efficiency Laser Therapy treatment for veterinarians is becoming more popular. Veterinarians equipped with this technology testify of the therapeutic efficacy on many conditions and of the customers' satisfaction given by the treatments. Effective and spectacular on: Pain treatment in general Arthritis Traumatology Promotion of wound healing But also: Ear infection Lower back pain Dental abscess Gingivo-stomatitis Granulomas Dermatitis Slow wound healing Etc. Laser therapy gives the opportunity to provide new services appreciated by customers. This helps to show the proactive approach of a clinic and to build customer loyalty. Ensuring to choose the appropriate equipment in terms of budget, will allow an increase in clinic revenue for small investment of time and money.
